3D Scanning Order

3D Scanning Order
Instant price - order today

Share the details of your project to place your order. Be prepared to enter the item’s dimensions, its complexity, and let us know the type of model you need.

Easy shipping

Send your part securly with our pre-paid shipping label

Secure data

We keep your data private and can sign NDAs on request

Technical support

You have our support before, during and after

Build your 3D scanning order

Specify the type of 3D scanning task this item is
Single part
Order 3D scanning services for just a single item
First part of multiple
Begin a multi-part 3D scanning order
Additional part (Excl. set-up fee)
(-£50.00)
Add an additional item to a multi-part order
Enter a reference name for this part
Let us know if your part needs returning to you once we're done 3D scanning it
How complex a part determines how long it will take to 3D scan
Simple
Semi-complex
(+...)
Complex
(+...)
Objects featuring continuous, streamlined surfaces with minimal fine details, and completely free from holes, recesses, or hidden features.

Examples include a cricket ball, a bar of soap, minimalist ornaments or a Rubik’s Cube
Objects with some ribbing, holes or features that require a more mobile 3D scan. This is the most common type of complexity we see.

Examples: a kettle, a cast automotive engine cover or suspension components
Parts with geometry that is challenging to 3D scan such as deep pockets, lots of ribbing detail, tubular frames.

Examples: a wheelchair, full engine or a chandelier
Select the type of digital file you require for your simple part
Raw mesh file (.stl/.obj)
(+£0.00)
Watertight mesh file
(+£10.00)
As-built model (.step/.iges)
(+...)
Parametric CAD model (.step/.iges)
(+...)
Select the type of digital file you require for your semi-complex part
Raw mesh file (.stl/.obj)
(+£0.00)
Watertight mesh file
(+£35.00)
As-built model (.step/.iges)
(+...)
Parametric CAD model (.step/.iges)
(+...)
Select the type of digital file you require for your complex part
Raw mesh file (.stl/.obj)
(+£0.00)
Watertight mesh file
(+£70.00)
As-built model (.step/.iges)
(+...)
Parametric CAD model (.step/.iges)
(+...)

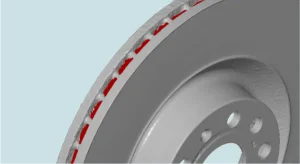

This file is the the raw 3D scan data, exported as a .stl or .obj. The data captured is not usually watertight and may have holes, artefacts or some irregularities around small features.

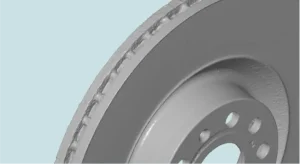

This model is processed and cleaned-up to create one solid 3D mesh file that can be used for 3D printing.

Hole filling on these models mean the assumptions must be made by the software where the 3D scanner could not reach such as deep pockets or behind ribs. As a result, these areas won’t be dimensionally accurate.

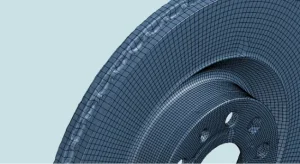

An as-built model, or NURBS model, is the most basic level of reverse engineering. It creates a patchwork surface directly referencing the scan data, carrying any wear or defects from the original part into the model.

This approach is best suited to inspection, part analysis, CFD/FEA analysis, or applications where no design changes are needed.

Good for:
Accurate-to-life CAD; Tight surface tolerance; and Fast and low-cost CAD

Considerations:
Imperfections replicated; Limited editability; and Manufacturing issues replicated

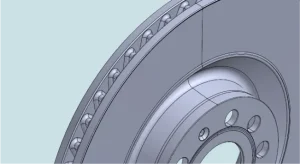

Design Intent CAD models restore the original engineer’s vision. Instead of replicating flaws, an idealised, optimised version of the scan is created, with defects corrected to meet engineering standards. Flat surfaces are flattened and features restored for precise, reliable results.

Good for:
Manufacturing data; Restoring or improving; Correcting deformation; and Generating editable CAD

Considerations:
Takes longer to complete; CAD generated manually; A more costly service; and Assumptions made
Here is a summary of the information you provided about your part
Inital Cost
Part options
Order total (ex. VAT)
